HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity

1pcs
MOQ
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
감지기: 전기적 로딩, 고정밀 센서
터치 스크린: 터치스크린 8인치
값 보정: 자동 수정
데이터 처리: HR, HB, HV 및 기타 경도계 변환
테스트 결과: 테스트 결과는 자동으로 저장, 처리 및 인쇄될 수 있습니다.
초기의 시험 군사력: 10kgf(98.07N)
합계에 의한 검사 군사력: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
로크웰 경도 스케일: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
측정 범위: HRA : 20-88 、 HRB : 20-100 、 HRC : 20-70 、 HRD : 40-77 、 HRE : 70-100 、 HRF : 60-100 HRG : 30-94 、 H
데이터 메모리: 20가지의 다양한 결과 저장 가능, 프린터 내장, RS-232
시편의 최대 높이: 200mm
인덴터 센터부터 벽까지 거리: 160mm
기계 크기: 560×200×800mm
무게: 70kg
힘: AC220+5%,50~60Hz
강조하다:

Rockwell Hardness Tester with touch screen

,

Rockwell Hardness Tester 150kgf capacity

,

8-inch touch screen Rockwell Hardness Tester

기본 정보
원래 장소: 베이징
브랜드 이름: HUATEC
인증: ISO, CE, GOST
모델 번호: HR-150DT
결제 및 배송 조건
포장 세부 사항: 표준 수출 합판 패키지
배달 시간: 4일이요
지불 조건: T/T, PayPal, Western Union
공급 능력: 한 달에 500pcs
제품 설명

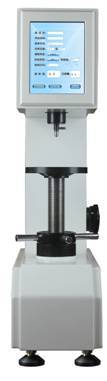

Electric Loading Touch Screen Rockwell Hardness Tester HR-150DT
Professional Hardness Testing Solution

The HR-150DT is an advanced electric loading hardness tester featuring touch screen operation and closed-loop control system. Designed for precision hardness measurement across various materials and industrial applications.

Applications

Ideal for industrial production and quality control of ferrous/non-ferrous metals, hardened steel, tempered steel, annealed steel, carbide materials, powder metallurgy, and thermal spray coatings.

Key Features
  • Electric loading with weights and high precision sensor
  • User-friendly 8-inch touch screen interface
  • Automatic correction for high, medium and low hardness values
  • Built-in convex cylindrical surface hardness correction
  • Advanced data processing with HR/HB/HV conversion
  • Test result storage, processing and printing capabilities
  • Compliant with BSEN 6508, ISO 6508, ASTM E18, GB/T230 standards
Technical Specifications
Model HR-150DT
Initial Load 10kgf (98.07N)
Total Load 60kgf (588N), 100kgf (980N), 150kgf (1471N)
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Hardness Range HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Dwell Time 0-99s
Resolution 0.1HR
Load Error <0.5%
Display LCD with 8-inch screen
Data Storage 60 test results, built-in printer, RS-232 interface, optional USB storage
Conversion Scales Superficial Rockwell, Brinell, Vickers
Max Specimen Height 200mm
Indenter to Wall Distance 160mm
Dimensions 560*200*800mm
Net Weight 70kg
Power Supply AC220 ±5%, 50-60Hz
Operation Interface
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 0
Touch screen interface with all 15 Rockwell scales
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 1 HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 2
Automatic hardness value correction system
HR-150DT Rockwell Hardness Tester with 8-Inch Touch Screen, 150kgf Capacity 3
Precision load correction functionality
Standard Accessories
Name Quantity Name Quantity
Diamond Rockwell Indenter 1 1.5875mm Ball Indenter 1
Hardness block (HRC High Low 2, HRB 1) 3 Large, Medium, "V" shaped Testing Table 1 each
Weights (A,B,C) 1 each Dust bag 1
U disk, touch pen 1 each Regulating screw 4
Power line 1 2A fuse 1
Operation Manual 1 Calibration certificate 1
